3D model of site - The area that needs to be surveyed is the field just below the circular storage units |
Mission Summary
- Goal: Use drone scanning to create contours to assist in the design of an emergency hardstand.
- Tech: DJI Phantom 4 Pro, Drone Deploy
- Conditions: Afternoon, sunny, moderate wind
- Outcome: This proved to be an extremely effective way of gathering elevation data and converting that into contours to help Civil Designers plan an emergency hardstand area.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi0qRR1LD6fvWfvR-gW9lrSxk31_jDQUhvcNTedv_UxQ_byTNz1jRwp1-WZhhXd0DZW3YziJFhRDqD1ISBbBrHCmUe930QK_WbxpYIc5Lz6xbk6Tbhz1xa8z1HXePmcoud3vZ7hGQTM9wHW/s640/1.jpg) |
High resolution orthomosaic of the existing site plus the field below where the emergency handstand is to be constructed |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhxEFsrTaSvM96GdKa8LPwdI0RXVxRSkYLJKsx_MxVEfsNxJvN1r9QDfePR_xvLf1ugrZx0681pQkAi0geN_-upeAuHfQAq_E8YqoEqpRJIDAnY_M5Re1ZE1qp4o-US7YaGfoAtQD6rsk3b/s640/2.jpg) |

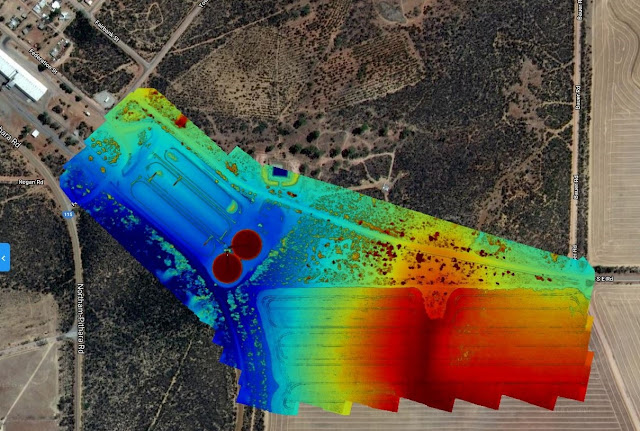

With the elevation gradient it's much easier to understand the levels and slope of the area |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgmJrVC6_OJcQ_-NNwTqEG-lPcFNeun5Dbyn0X-QtFrNBlPuvR426dZ7GcG1wxnR1E6FGKFJK_Gbe3bG_LJfAb5Gi9xc07Jy6llt26vGimCjQq1qmtzaYkPYW1Z8pTB2gYmyYV6yDRYIkmC/s640/CBH4.jpg) |
The contours that were used by the Civil Designers for use in software such as AutoCAD and 12D |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh1MsgGFojPB0OlVcaNBXjbffG-Cc8UvCXzoh4E9IfeKb613Xg-w1QbLMlVIqoGvAS6gyRiqP400tO4pUrNgtv-ReKWFMxSq9i-Nb-ik-T0ehwr8v7H-5PhshrWfBKx4lsP7lEmX0CuEtOx/s640/contours.JPG) |
Part of the final design |
This has been another 'drone adventure' in aerial surveying, inspection and mapping by
The Aero Scout.
