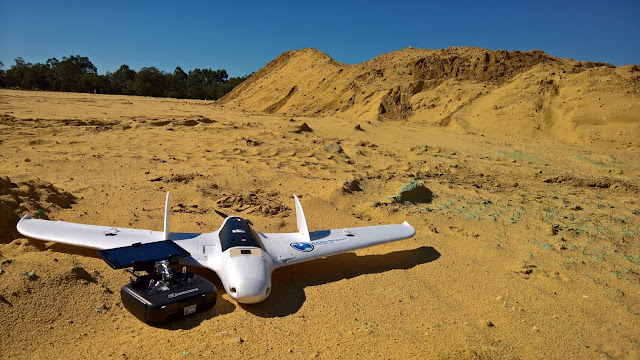

Drone mapping a quarry and new housing development |
Mission Summary
- Goal: To create a 'drone map' of a quarry and housing development
- Tech: Skyray fixed wing drone, Canon S100 camera, Tower app, Drone Deploy
- Conditions: Midday, sunny, nil wind
- Outcome: 50 hectares where successfully mapped in 14min. :)
I found an excellent site that was going to allow me to demonstrate how a drone map can assist both a quarry manager and a housing development manager with planning and monitoring of the site.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg3eFvt4G0HfapcscO0CYcREB_tjxvrIavaFCLI19XxJLP5wEYQ9tOo2SliCvWU-ewHg8gouZ7hbp5A-JKXoox45YM-KPClL5vMGZ9psEp2Lp3EKo6O7NzPGIOaAnCAj_ezHrl8uraCPvxJ/s640/Quarry+drone+map.jpg) |
2D map of the quarry (left) and new housing development (right) created with drone images |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg9a9HvNhVJtMQdqMf-1AztzdacaHKlGi4W-K-HhVIRJciZmQxyXMjC_rSkfoblI_v6mmKdx9QS6SbFed7ppqJ7rOM86wEb9k2T7FDuZJehG5eDmkT0cfAZKOPqwyddrX_towekSBFpcHEO/s640/Drone+elevation+map.jpg) |

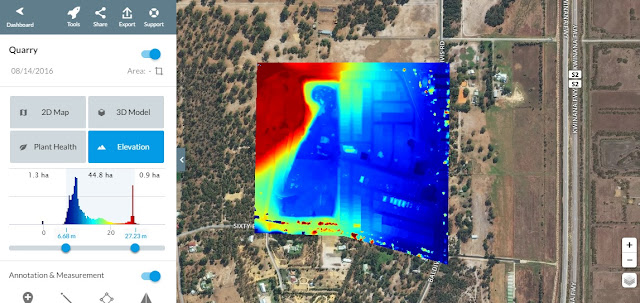

Elevation visualisation of the quarry and housing development |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgFMaQsMlEDrXCzYpYs_YP3bg9nQCvJQEJ_tR_UlJxerCcyKHOoF2EMf5XCNzhkkwQyLUD3zIJ6deKomTMV5xxBWJff2kaZgKSQt20PaBG56IfLROIXs9Yx5KXoVUtG2Ab7VqxINbJHaQ4i/s640/Quarry+drone+map1.jpg) |

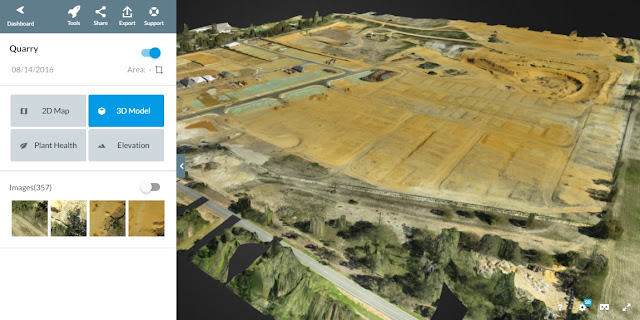

3D view of the quarry and new housing development |
This has been another 'drone adventure' in aerial surveying, inspection and mapping by
The Aero Scout.
