Drone Structure Scan - Graffiti Train Carriage
Drone Structure Scan of a train carriage at Leighton Beach, Perth using a Mavic Pro and photogrammetry processing with Drone Deploy.
Mission Summary
- Tech: DJI Mavic Pro, Drone Deploy
- Conditions: Midday, overcast, moderate wind
- Comments: I spotted an interesting subject matter for a drone inspection scan next to the beach we frequent.
![Drone scan train carriage Leighton Beach using Drone Deploy Drone scan train carriage Leighton Beach using Drone Deploy](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjskmHcq61TPNnfgFg-BdJWy4ZTFmGOuzclDC3RBAXFPnqrTj3eyaNnCFnAYQWH9IhFn4pTINIKHCHDnqY_2Rt4qMoZ4wa1dMoORIhw4lH_m-3JUMihKasqtvRcAP8wrS54CSwG1bFjoX6A/s640/Graffiti+Train2.JPG) |
The ends of each carriage has a small framed area, this was the biggest challenge for the software |
![Drone scan train carriage Leighton Beach using Drone Deploy Drone scan train carriage Leighton Beach using Drone Deploy](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiq07GaUH3O9KS9FQA41LY7wKzQVhlsPHxcBCdput8MVf8cx1IHipHNhyH3SU99esBj-G1mEvs30rv1bT8cWWR4xlz59px1Z2VHJwT3TAsANt7Riq2tIYNXMs-KX-OFLEqFnUt_JuFH3zxn/s640/Graffiti+Train3.JPG) |

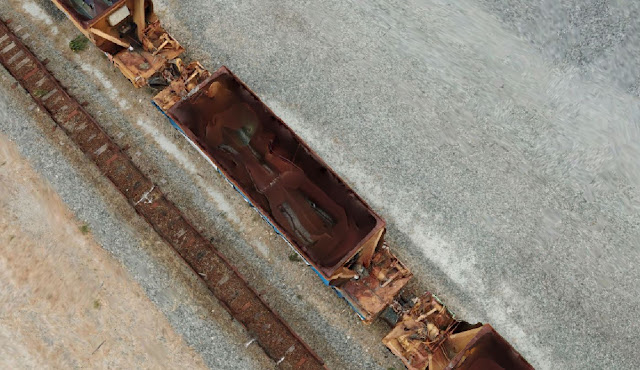

The chute at the base of each carriage did not model well, next time I'll take more nadir images |
![Drone scan train carriage Leighton Beach using Drone Deploy Drone scan train carriage Leighton Beach using Drone Deploy](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhyQOorw08SNh-hk7RCvz72XEA6jQPxH4SQa2phTOQFUpbHs9PdJjg6I44TIGP8yzVskF0C9edyqot5A_L04PEod_LCTCo8n8IF5yl6z8pYAn4vfY08xB9oQv6qjhNu5fSn-BHOOqsHeMbz/s640/Graffiti+Train.JPG) |
The graffiti images rendered extremely well using Drone Deploy processing |
This has been another 'drone adventure' in aerial surveying, inspection and mapping by
The Aero Scout.
